Komori

Technical Specifications of Komori Presses

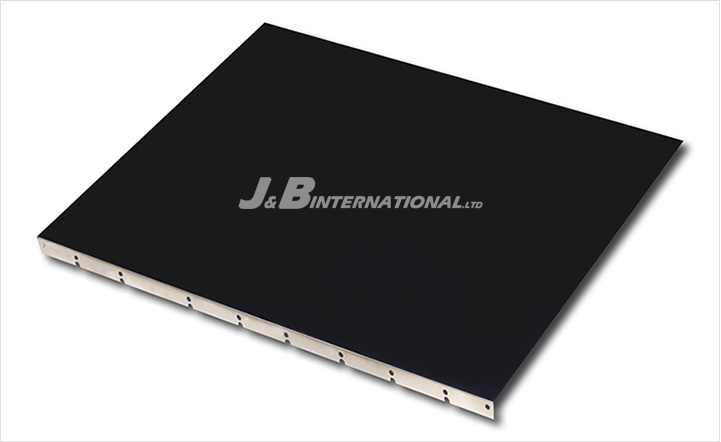

Why two Jackets are needed in Komori Presses?

 Except for LII-240, two Jackets are needed (per one cylinder) in Komori presses. There are 7 cylinders in SP-series, which means 14 Jackets are needed. Additionally, two more Jackets are needed because an in-feed cylinder is installed in the first unit. Totally, 16 Jackets are required to be installed in Komori Presses.

Komori Presses that use Jackets

  • 1.

    P-series which have a reversing device

    • L-40P series can print on both sides with 2,4,5 and up to 6 colors
    • LS-40P series, which is a new model, can print on both sides with 2,4,5 and up to 6 colors
  • 2.

    SP-series with a double-decker structure

    • L-40SP can print on both sides with 1,2,4,5 and up to 6 colors
    • LS-40SP, which is a new model, can print on both sides with 2,4,5 and up to 6 colors
    • L-44SP and LS-44SP have same functions with L-40SP

Offer table

J&B CODE PressModel Thickness Base Steel Substrate Base Dim (L×W) Remark
K1 L40SP 0.411-0.420 0.35 1030×805 Top
K2 L40SP 0.411-0.420 0.35 1030×805 Bottom
KS1 L40SP 0.411-0.420 0.30 1030×805 Top
KS2 L40SP 0.411-0.420 0.30 1030×805 Bottom
K3 LS40SP 0.411-0.420 0.35 1030×805 Top
K4 LS40SP 0.411-0.420 0.35 1030×805 Bottom
KS3 LS40SP 0.411-0.420 0.30 1030×805 Top
KS4 LS40SP 0.411-0.420 0.30 1030×805 Bottom
K7 L44SP 0.411-0.420 0.35 1130×919 Top
K8 L44SP 0.411-0.420 0.35 1130×919 Bottom
K9 LS44SP 0.411-0.420 0.35 1150×888 Top
K10 LS44SP 0.411-0.420 0.35 1150×888 Bottom
